Automatic Bottle Blowing Machine

  • Automatic Bottle Blowing Machine
  • Automatic Bottle Blowing Machine
  • Automatic Bottle Blowing Machine
  • Automatic Bottle Blowing Machine

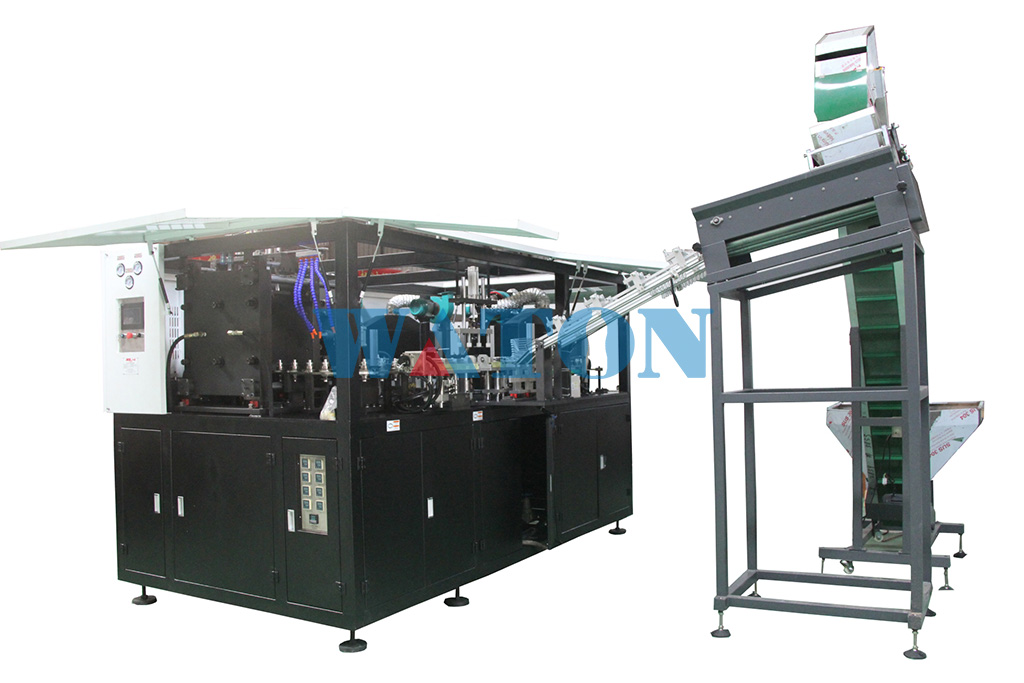

Automatic Bottle Blowing Machine

    Подробности Упаковки: Wooden case
    производительность: 5 Sets per month
    марка: Waton
    транспорт: Ocean,Land,Air,Express
    Место происхождения: Taizhou, China
    Способность поставки: 5 Sets per month
    Сертификаты : CE
    Код ТН ВЭД: 84773000000
    Порт: Ningbo,Shanghai

Базовая информация

Модель: ECO-4L

Описание продукта

Product Description
Models
ECO-4L
Theoretical Capacity
3600-4500BPH
Mold Cavities
4
Neck Size
18-38mm
Max. Volume
2000ml
Advantages
Preform Feeding System and Transfer System driven by servo motor, running at high accuracy and high speed. Combination of
stable, energy-saving, eco-friendly.


ECO-4L 4-cavities linear full-auto stretch blow molding machine, is an economical full-automatic PET bottle blowing machine independently developed by WATON Machinery. It is economical, fast and convenient. It can produce all kinds of bottles below 2000ml, including food packaging bottles, edible oil bottles, soda and mineral water bottles, fruit juice bottles, wine bottles, cosmetics bottles and so on.

Direction for use
1.We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.


2.We will send the instruction book to you to let you install the machine. You can talk with our engineer by video chat or we will send the engineers overseas to help you.


Application

WATON Machinery designs the most suitable machine models according to the special requirements of customers, suitable for PET containers from 200ml~20L, including package for water, Carbonated Soft Drink, juice, milk, edible oil, beer, solid food, cosmetics, pharmaceuticals, etc.
Detailed Images

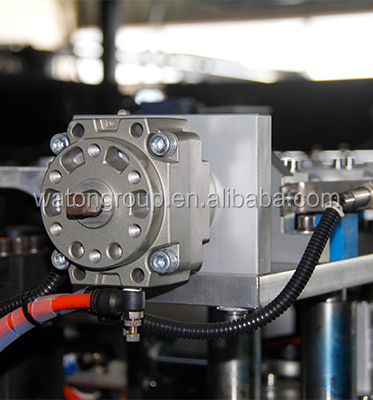

1.Upgrade to Servo Motor Drive

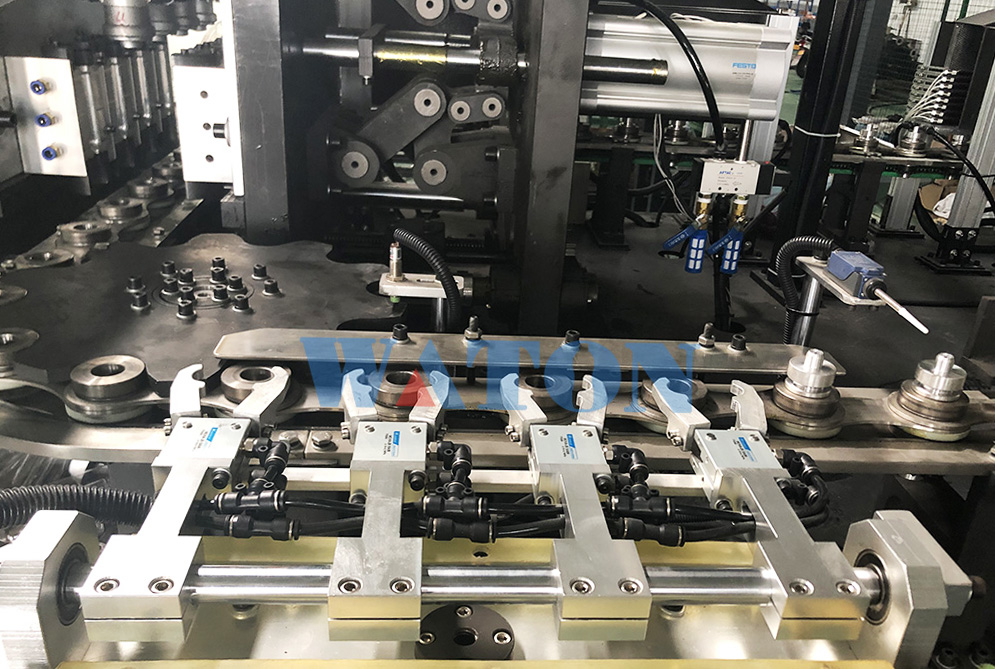

-Preform Feeding System: servo motor partitioning effectively solves the problem of wear and deformation. -Preform Transfer System: preforms horizontal movements are driven by Servo Motor. Make preforms 4pcs as one unit, overall simplified stepping motion, achieve high-speed positioning and smooth motion. To complete one step cycle, the Servo Motor drive gear rotate only one-third of a turn. Speed of preform moving is 2 times of Cylinder Driven way.
2.Fine Details Customized design
-Mold fixed by Drawer Design. Aluminum mold changeover work can be easily done in half hour.
-Preform Feeding & Transfer Chains adopts composite Nylon polymer, which is light, wear resistant and without deformation.

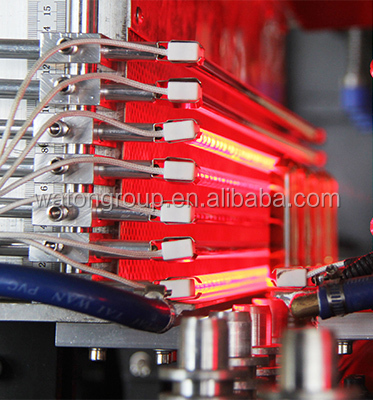

-The most advanced high frequency Infrared Heaters upgrade the heating efficiency 30%-50%.
-Intelligent temperature control system. It works when large ambient temperature difference(-28~45℃
3.Top quality parts, stable performance

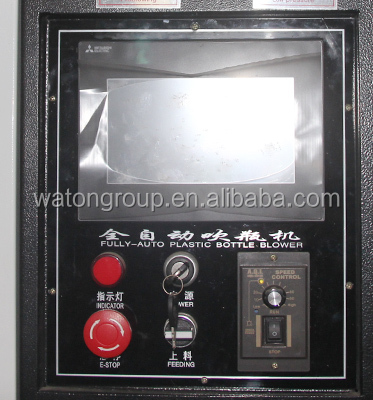

-HMI(Human Machine Interface), overall computer control, easy to operate.
-Independent operation station, more flexible to arrange operating positions. Far away from Heating Area, safe.
-Multi-point photoelectric detection, protect Positioning System, Clamping System and Stretch System.

Specifications

Eco 2 4 6


Certifications

Packing&Shipping
As a factory, all of packages are neutral to support trading company and whole seller and distributor from all over the world. If you have special request, please leave your comments.

After Sales Service

1.Your inquiry related to our product & price will be replied within 72 hours.

2.Well-trained & experienced staff will answer all your inquiries in English and Chinese.

3.Working time: 8:30am ~5:30pm, Monday to Saturday.

4.Your business relationship with us will be confidential to any third party.

5.Good after-sales service offered, please get back to us if you got any questions.

Company Introduction

WATON Machinery is a professional manufacturer of two-step linear full-electric high-speed automatic PET bottle blow molding machine, located in Taizhou City, Zhejiang Province. Our team has 20-years experience in PET stretch Blow Molding Machine manufacturing. Since establishment, we have been committed to be a trustworthy and reliable partner, providing customers with high efficiency, low energy consumption, stable operation of equipment and excellent services.

We offer service in:

√Automatic/Semi-auto Electric PET Blow Molding Machine

√Turnkey solution for PET bottle production line

√In-line service for PET bottle production line & Filling line.

Our Services & Strength

1.Two years warranty, lifetime maintenance.
2.As for installation, we will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines.
3.send you two years easy broken spare parts for free together with machines, shipping together.


FAQ

Q1: Are you a manufacturer or trading company?

A1: We are the manufacturer from Taizhou, so we can offer you the best quality and best price of the machine.

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with high quality after-service. Also we have two year warranty of the spare parts, free of charge.

Q3: What is the advantage of servo control?

A3: 1. Precision

2. Fast reaction, make high speed possible

3. Low power consumption

4. Low noise

5. hygiene, without oil leakage problem

Q4: Do you have technical support after we purchased your machines?

A4: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.

Q5: Can I visit your factory and send team for learning and inspect?

A5:Yes,sure.We will do our best to teaching you how to use the machine.welcome to visit our factory!

Q6: What your advantages are?

A6: 1. Stable running machines with newly technology, competitive price;

2. top rank technical support

3. Best and prompt service

Q7: Where is your factory located? How can we visit there?

A7: Our factory is located in Tai Zhou City, Zhe Jiang Province, China. From Shanghai to our city, it takes 3.5hrs by train, 45mins by air.

Q8: What is your terms of packing?

A8: Because of the new provisions on fumigation, we pack machines with bubble film and wrap film. It is safe pack in container. We can also do wooden case. Some countries require fumigation for wooden case. It depends on your country’s requirement.

Q9: When Can I get my machine after I paid?

A9: The delivery time is about 30-45 working days.

Q10:Does the machines & water dispenser have any certificates?

A10:Yes, CE certificate.
